Product details
Frameset

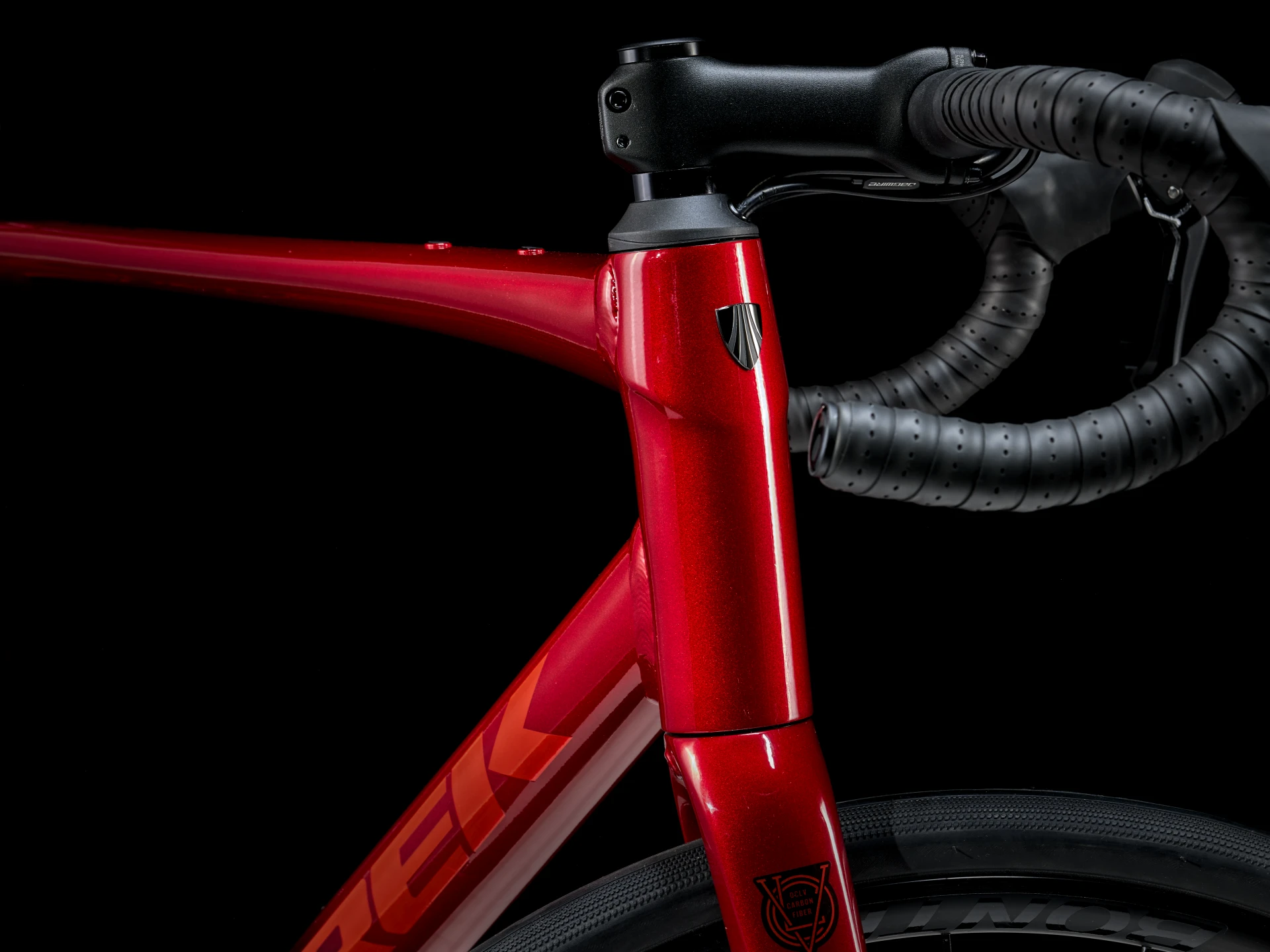

| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|

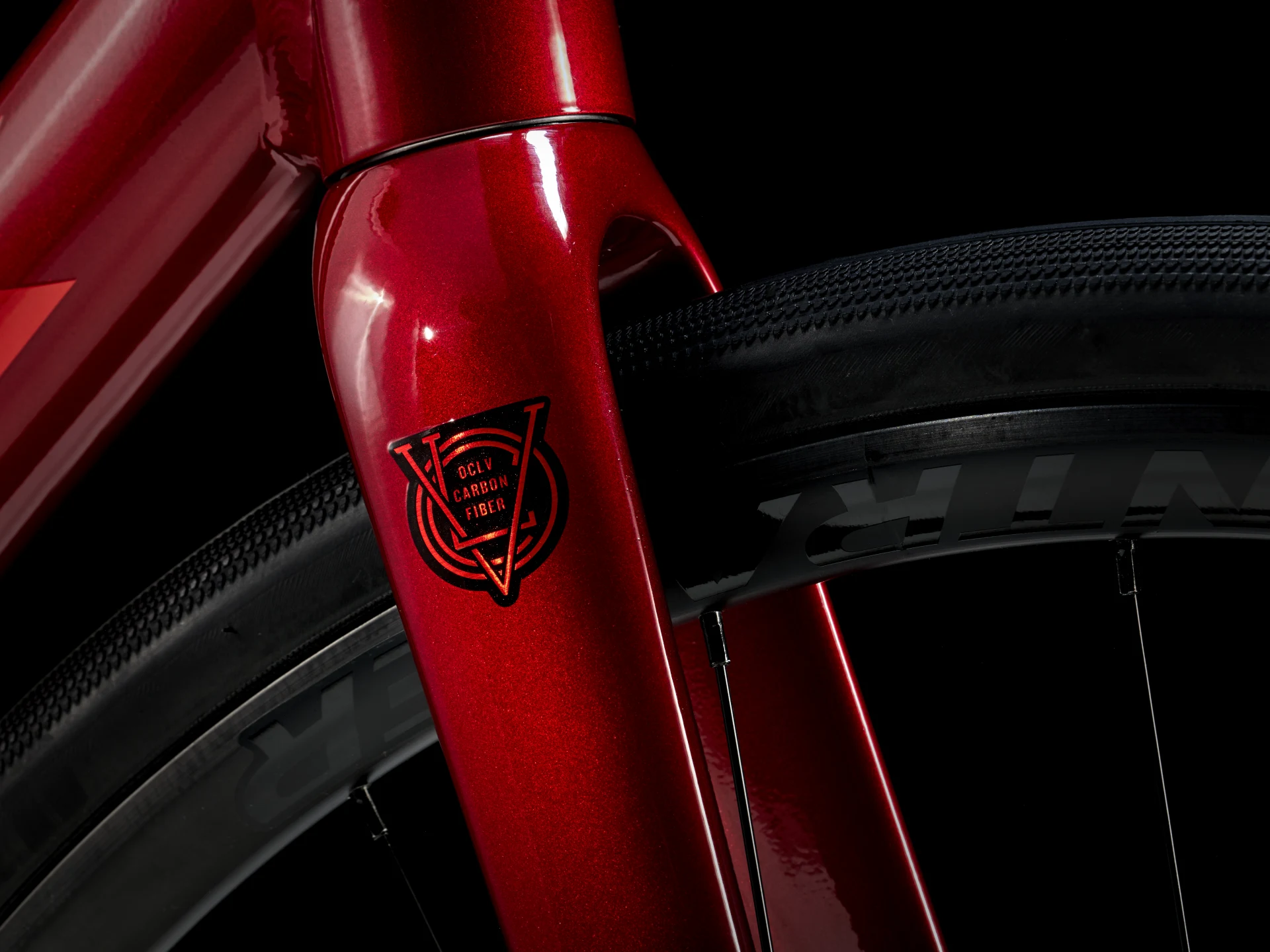

| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Weight
| Weight | 56 - 10.55 kg / 23.26 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Drivetrain
| *Shifter | Size: 44, 49, 52, 54, 56, 58, 61 Shimano Claris ST-R2000-R, 8 speed, right |
|---|---|
| Size: 44, 49, 52, 54, 56, 58, 61 Shimano Claris ST-R2000-L, 8 speed, left |
|
| Front derailleur | Shimano Claris R2000, 31.8 mm clamp |
| Rear derailleur | Shimano Claris R2000, medium cage, 34T max cog |
| *Crank | Size: 44 Shimano RS200, 50/34 (compact), 165 mm length |
| Size: 49, 52, 54 Shimano RS200, 50/34 (compact), 170 mm length |
|
| Size: 56, 58, 61 Shimano RS200, 50/34 (compact), 175 mm length |
|
| Bottom bracket | Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle |
| Cassette | Shimano HG31, 11-32, 8-speed |
| Chain | Shimano Sora HG71, 8 speed |
| Max. chainring size | 1x: 50T, 2x: 50/34 |
Wheels
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Max tyre size | 38 mm without mudguards, 35 mm with mudguards |
Components
| Saddle | Verse Short, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
| Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
|

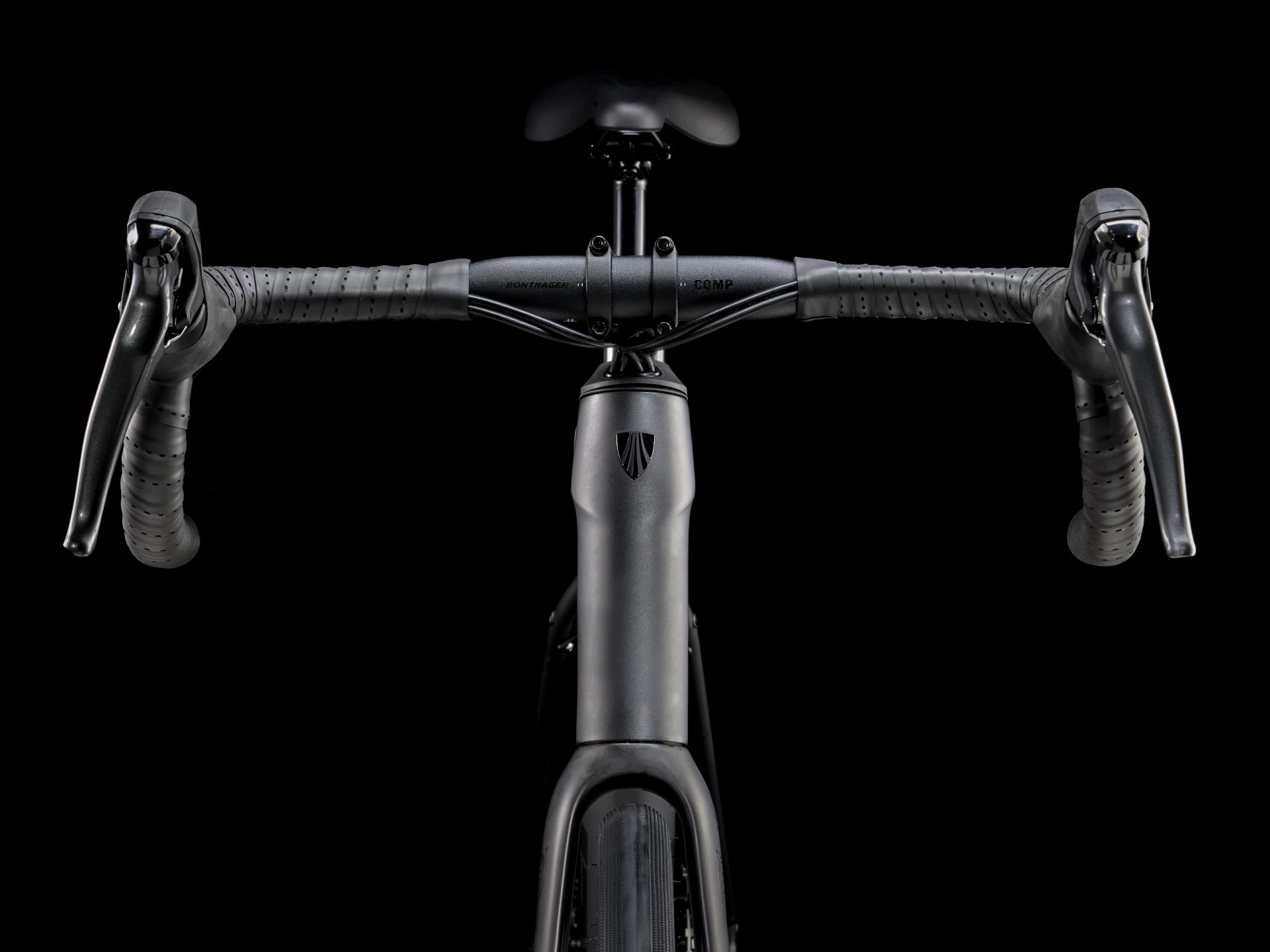

| *Handlebar | Size: 44 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width |
|
| Size: 49 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
|
| Size: 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
| Size: 52 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width |
|
| Size: 54, 56 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
|
| Size: 58, 61 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width |
|
| Size: 58 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
|
| Brake | Tektro C550 mechanical disc brake, dual piston, flat mount |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Sizing | ||
| Size | Rider Height | Inseam |
| 44 | 150 - 153 cm | 71 - 73 cm |
| 4'11" - 5'0" | 28" - 29" | |
| 49 | 156 - 163 cm | 74 - 77 cm |
| 5'1" - 5'4" | 29" - 30" | |
| 52 | 163 - 168 cm | 76 - 79 cm |
| 5'4" - 5'6" | 30" - 31" | |
| 54 | 168 - 174 cm | 78 - 82 cm |
| 5'6" - 5'9" | 31" - 32" | |
| 56 | 174 - 180 cm | 81 - 85 cm |
| 5'9" - 5'11" | 32" - 33" | |
| 58 | 180 - 185 cm | 84 - 87 cm |
| 5'11" - 6'1" | 33" - 34" | |
| 61 | 185 - 191 cm | 86 - 90 cm |
| 6'1" - 6'3" | 34" - 35" | |
