Product details
Frameset

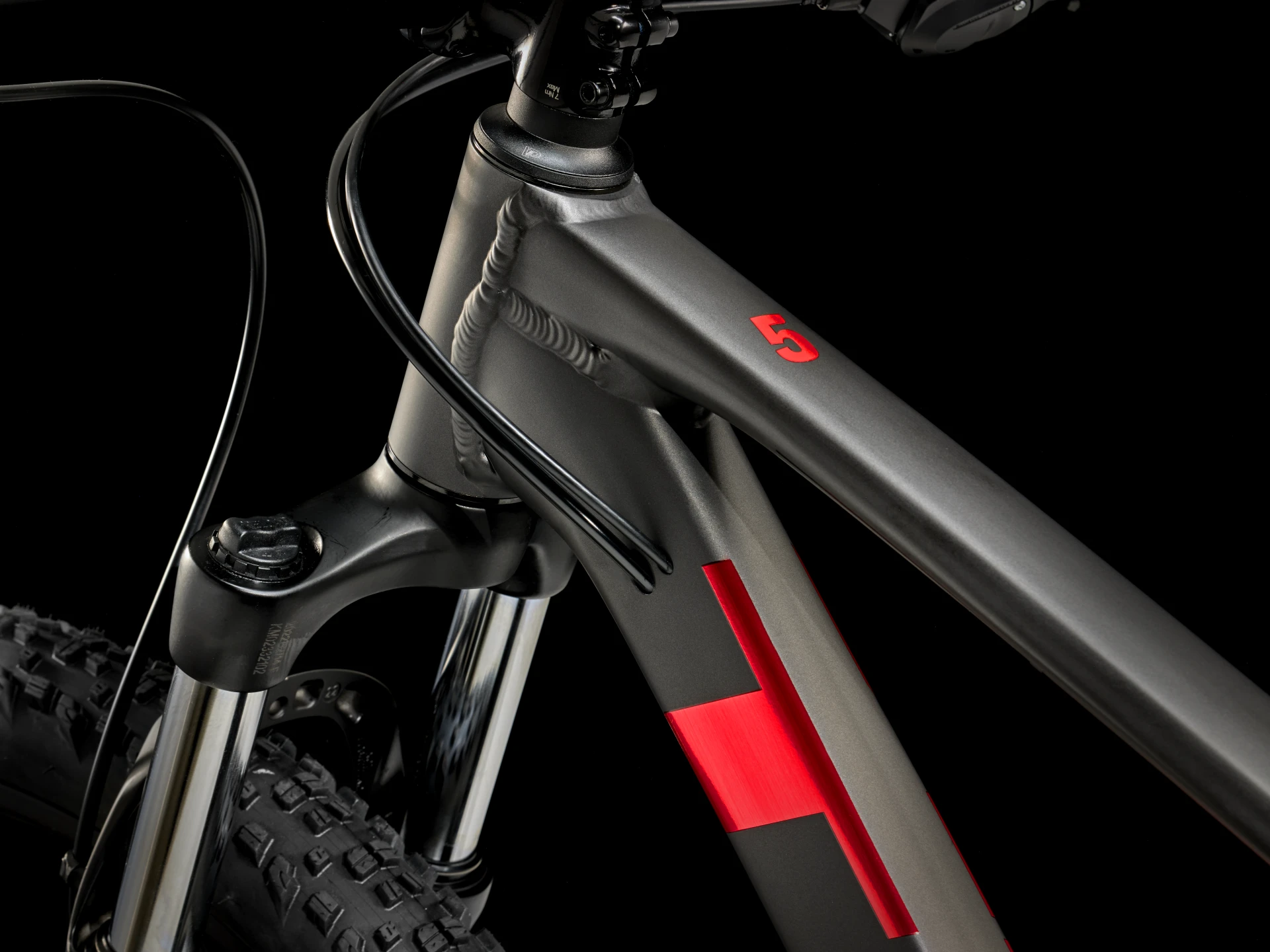

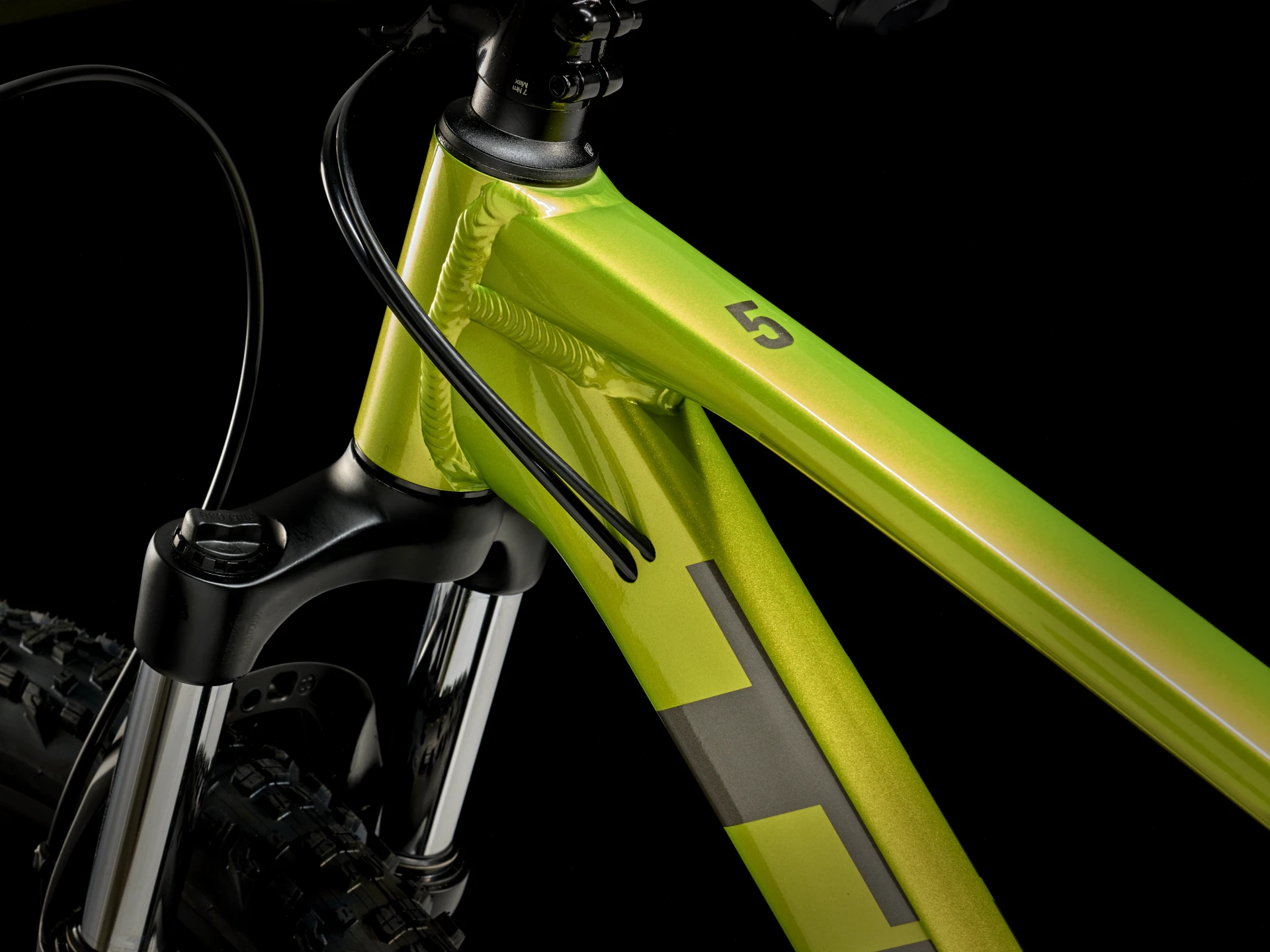

| *Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|

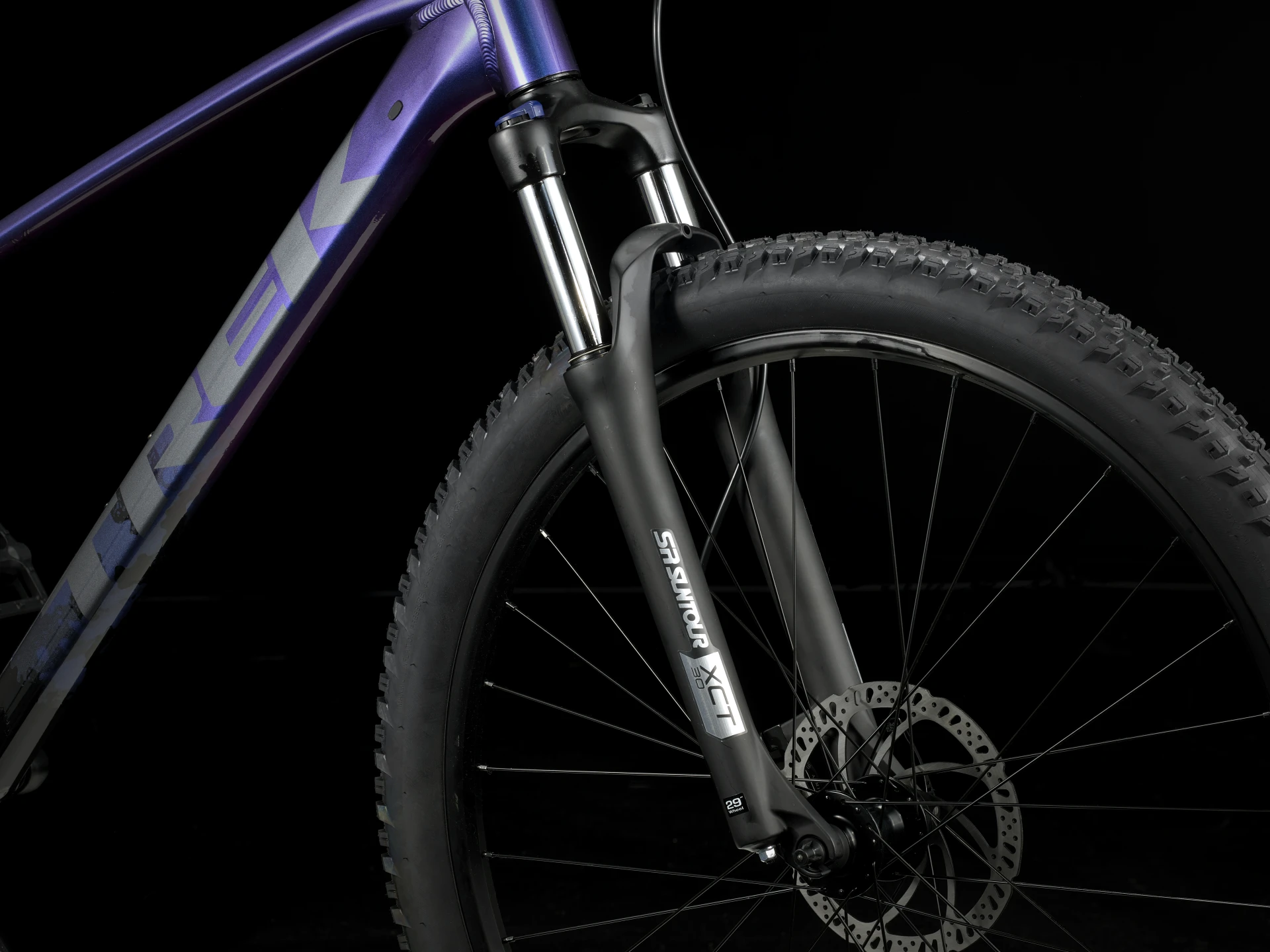

| *Fork | Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| *Tyre | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
| Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" |
|
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank | Size: XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length |
| Size: S , M , ML Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length |
|
| Size: L , XL , XXL Prowheel C10Y-NW, 30T steel narrow-wide ring, 175 mm length |
|
| Bottom bracket | VP BC73, 73 mm, threaded cartridge |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
Components
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|---|---|
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake rotor | Tektro, 6-bolt, 160mm |
| *Brake Set | Size: XS , S Tektro HD-M276 hydraulic disc, short reach |
| Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
|
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight
| Weight | M - 15.10 kg / 33.29 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Sizing | ||
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm | 69 - 73 cm |
| 4'9" - 5'1" | 27" - 29" | |
| S | 155 - 165 cm | 74 - 78 cm |
| 5'1" - 5'5" | 29" - 31" | |
| M | 165 - 176 cm | 79 - 83 cm |
| 5'5" - 5'9" | 31" - 33" | |
| ML | 173 - 180 cm | 81 - 86 cm |
| 5'8" - 5'11" | 32" - 34" | |
| L | 177 - 188 cm | 84 - 89 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 195 cm | 89 - 91 cm |
| 6'2" - 6'5" | 35" - 36" | |
| 2XL | 195 - 203 cm | 91 - 97 cm |
| 6'5" - 6'8" | 36" - 38" | |
