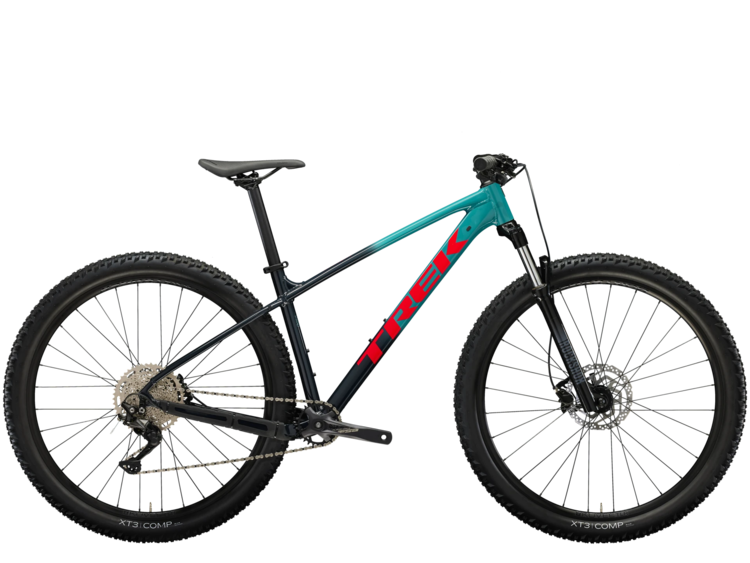

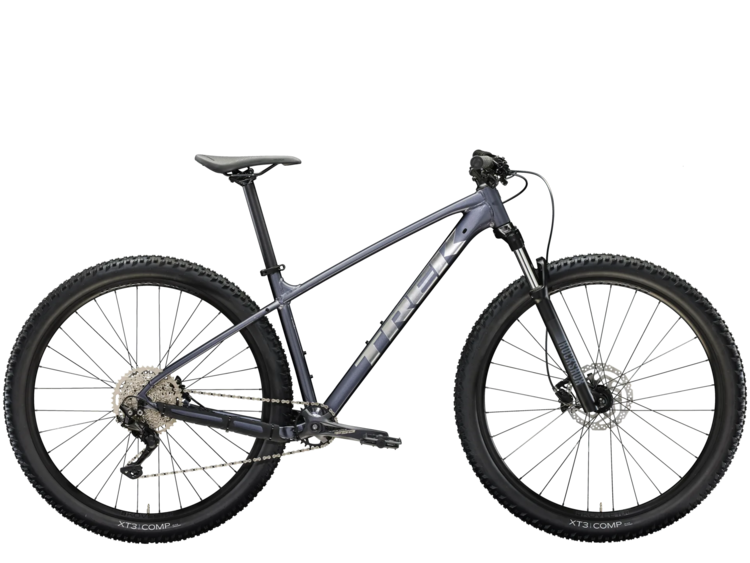

Product details
Expanded size range
With 8 different sizes, the Marlin has a bike made to fit every rider. Each frame is equipped with smart wheel sizing, with XXS frames rolling on 26" wheels, and wheel sizes increasing proportionally along with frame sizes, so every rider gets the fit they need.
Trail-ready, Upgrade-ready
The secret to Marlin's popularity is a real trail-savvy mountain bike frame that's upgrade-compatible, so it can grow with you as you take on bigger trails and tougher features.
Roll stronger with Thru Skew
Goodbye open dropouts. The Thru Skewer is a better, stronger, more precisely aligned rear wheel retention system that keeps your wheel more secure than quick-release skewers while still using the standard 135 mm rear hub spacing.
*Please note – spec applies to all sizes unless listed separately
| *Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork | Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
| Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | Bontrager Switch thru axle |
| *Rim | Size: XS , S Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Size: M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
| *Tyre | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
| Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" |
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|
| Rear derailleur | Shimano Deore M5120, long cage |
| *Crank | Size: XS , S , M FSA Alpha Drive, 28T steel ring, Boost, 170 mm length |
| Size: ML , L , XL , XXL FSA Alpha Drive, 28T steel ring, Boost, 175 mm length |
|
| Bottom bracket | FSA, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedal | Wellgo VPE-536 |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm |
| Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt,180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
| Weight | M - 14.60 kg / 32.19 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
| Sizing | ||
|
Size-table |
||
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm | 69 - 73 cm |
| 4'9" - 5'1" | 27" - 29" | |
| S | 155 - 165 cm | 74 - 78 cm |
| 5'1" - 5'5" | 29" - 31" | |
| M | 165 - 176 cm | 79 - 83 cm |
| 5'5" - 5'9" | 31" - 33" | |
| ML | 173 - 180 cm | 81 - 86 cm |
| 5'8" - 5'11" | 32" - 34" | |
| L | 177 - 188 cm | 84 - 89 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 195 cm | 89 - 91 cm |
| 6'2" - 6'5" | 35" - 36" | |
| 2XL | 195 - 203 cm | 91 - 97 cm |
| 6'5" - 6'8" | 36" - 38" | |
