Product details
| Frame | Alpha Silver aluminium, rack and kickstand mounts, replaceable derailleur hangar, 135x5 mm QR |
|---|---|
| Fork | Kids' suspension, threadless steerer, 45 mm travel |
| Max compatible fork travel | 50mm |
Wheels
| Hub front | Steel, 100 mm bolt-on |
|---|---|
| Hub rear | Steel |
| Rim | 24" 32-hole alloy |
| Tyre | Bontrager XR1, wire bead, 27 tpi, 24x2.25" |
| Max tyre size | 24x2.25" |
Drivetrain
| Shifter | Shimano Tourney RS45, 8 speet twist |
|---|---|
| Rear derailleur | Shimano Tourney TX80 |
| Crank | ProWheel alloy, 32T steel ring w/double guard, 152 mm length |
| Bottom bracket | Square taper, 68 mm, sealed cartridge |
| Cassette | C-Star freewheel, 13-34, 8-speed |
| Chain | KMC Z8.3 |
| Pedal | Kids' Satellite, 9/16 thread |
| Max. chainring size | 1x: 30T |
Components
| Saddle | Kids' padded, integrated seat post, with handle |
|---|---|
| Seatpost | steel, 27.2 mm, 300 mm length |

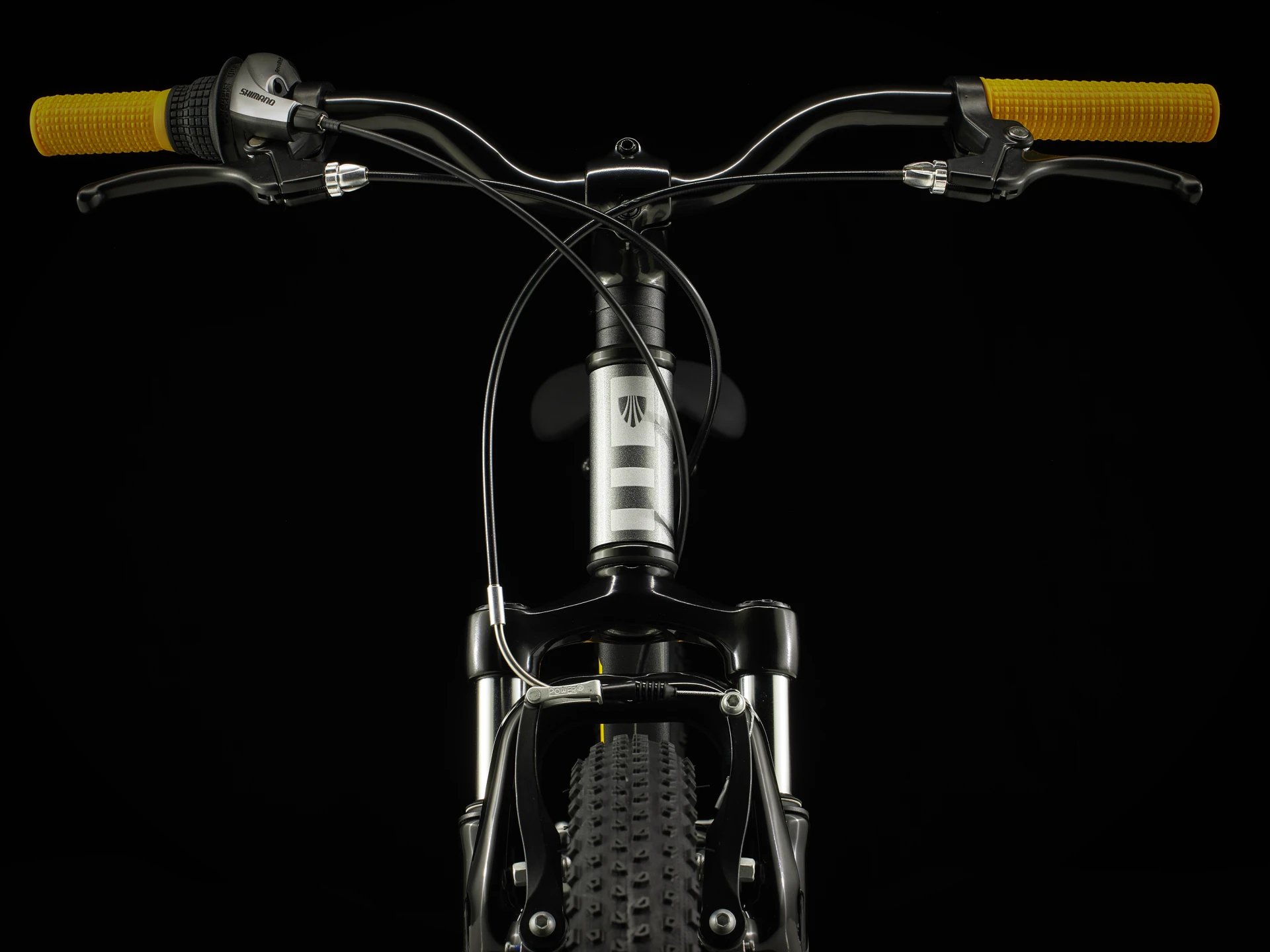

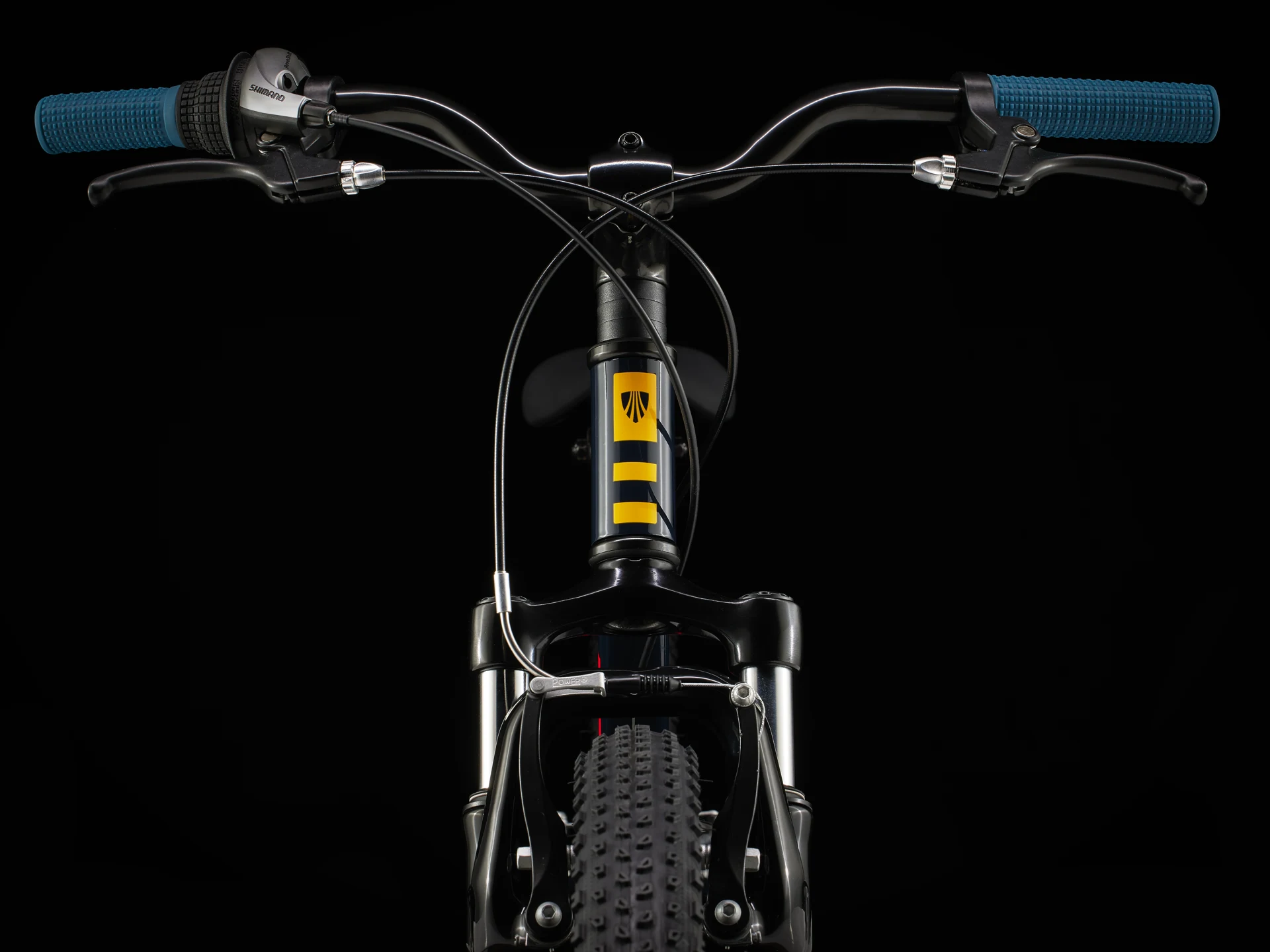

| Handlebar | Kids' steel, 25.4 mm clamp, 40 mm rise, 560 mm width |
| Grips | Kids' grip, 130mm width |
| Stem | Bontrager Approved alloy, 25.4 mm clamp, 15-degree rise, 60 mm |
| Head set | Adjustable ball bearing, threadless |
| Brake | Alloy linear-pull |
| Brake lever | Kids', alloy |
Accessories
| Kickstand | Kickstand |
|---|
Weight
| Weight | 12.06 kg / 26.59 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 175 lb (80 kg). |
| Sizing | |
| Size | Rider Height |
| 12" wheel | 86 - 102 cm |
| 2'10" - 3'4" | |
| 16" wheel | 99 - 117 cm |
| 3'3" - 3'10" | |
| 20" wheel | 114 - 132 cm |
| 3'9" - 4'4" | |
| 24" wheel | 130 - 150 cm |
| 4'3" - 4'11" | |
| 26" wheel | 146 - 160 cm |
| 4'9" - 5'3" | |
