Product details
| Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR |
|---|---|

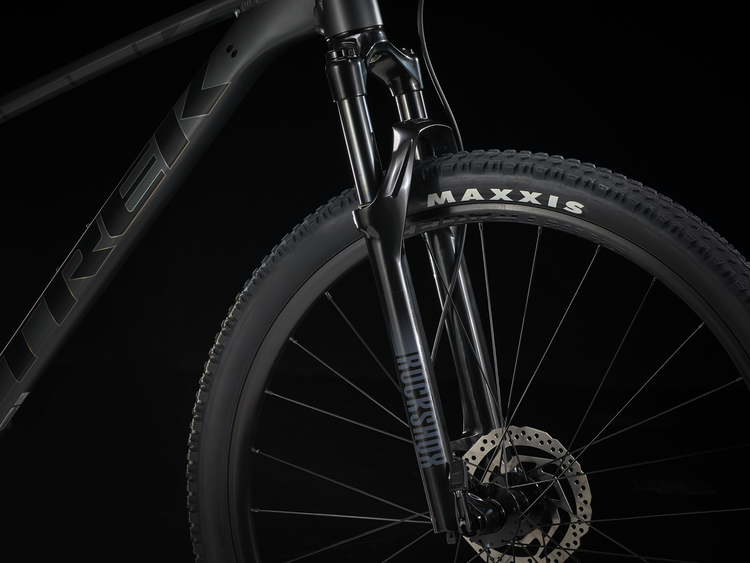

| *Fork | Size: XS RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Lite, 80mm travel |
| Size: S RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Lite, 100mm travel |
|
| Size: M, M/L, L, XL, XXL RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Stealth, 100mm travel |
|
| Max compatible fork travel | 120mm (XS: 100mm) |
Wheels
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR |
| *Rim | Size: XS, S, M, M/L, L, XL, XXL Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve |
| Size: XS, S, M, M/L, L, XL, XXL Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
|
| Spokes | 14g stainless steel |
| *Tire | Size: XS, S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35'' |
| Size: M, M/L, L, XL, XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35'' |
|
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 27.5x2.80" or 29x2.40" Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|

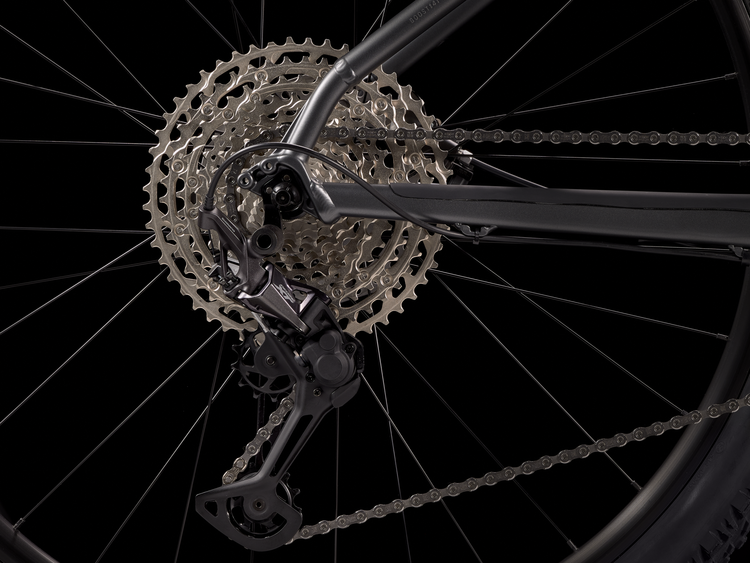

| Rear derailleur | Shimano XT M8100, long cage |
| *Crank | Size: XS, S, M Shimano MT511, 30T steel ring, 52mm chainline, 170mm length |
| Size: M/L, L, XL, XXL Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
|
| *Bottom bracket | Size: XS, S, M, M/L, L, XL, XXL Shimano BB-MT501 BSA |
| Size: XS, S, M, M/L, L, XL, XXL Shimano SM-BB52, 73mm, threaded external bearing |
|
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 32T |
Components
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size: XS, S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
| Size: M/L, L, XL, XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|

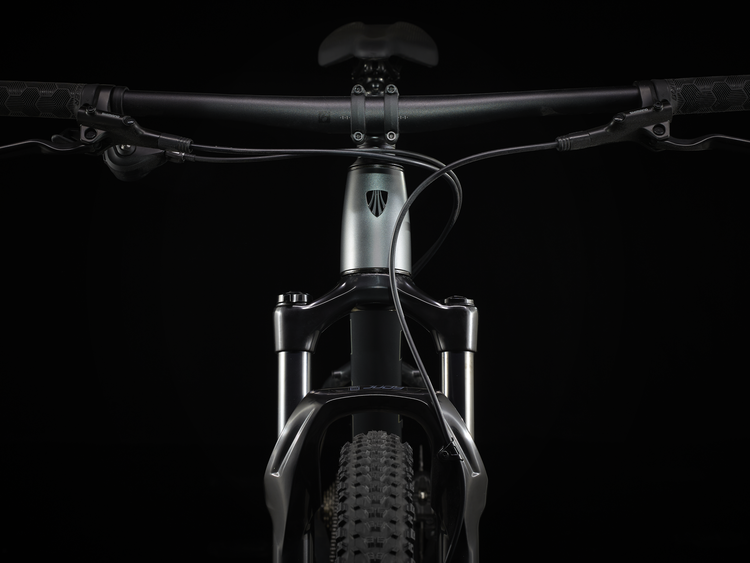

| *Handlebar | Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S, M Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
|
| Size: M/L, L, XL, XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS, S Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Size: M, M/L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Size: L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: XL, XXL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Headset | Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS, S, M, M/L, L, XL, XXL Shimano RT26, 6-bolt,160mm |
| Size: L, XL, XXL Shimano RT26, 6-bolt,180mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
Weight
| Weight | M - 13.05 kg / 28.78 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Sizing | ||
|
Size-table |
||
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm | 69 - 73 cm |
| 4'9" - 5'1" | 27" - 29" | |
| S | 155 - 165 cm | 74 - 78 cm |
| 5'1" - 5'5" | 29" - 31" | |
| M | 165 - 176 cm | 79 - 83 cm |
| 5'5" - 5'9" | 31" - 33" | |
| ML | 173 - 180 cm | 81 - 86 cm |
| 5'8" - 5'11" | 32" - 34" | |
| L | 177 - 188 cm | 84 - 89 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 195 cm | 89 - 91 cm |
| 6'2" - 6'5" | 35" - 36" | |
| 2XL | 195 - 203 cm | 91 - 97 cm |
| 6'5" - 6'8" | 36" - 38" | |
