By TREK
معلومات المنتج

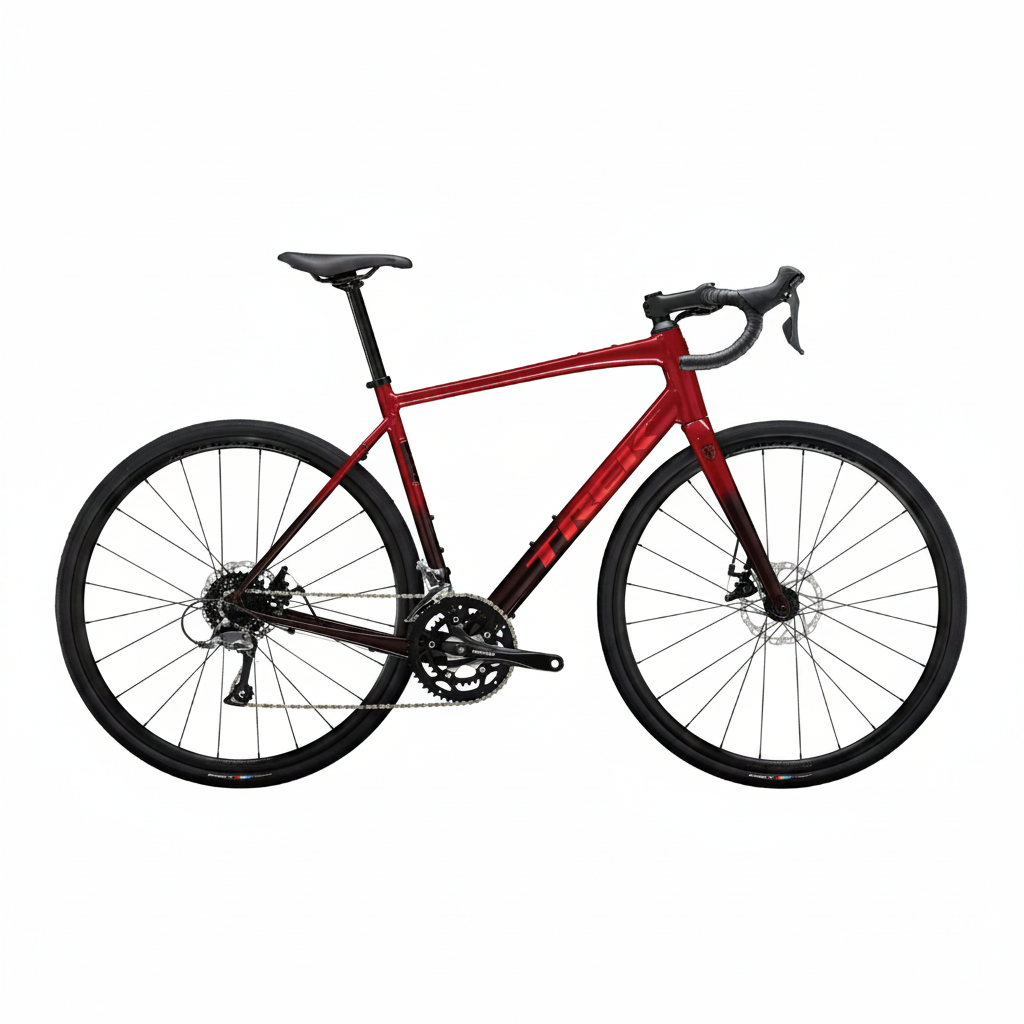

دراجة دومان آل 2 هي دراجة طريق سريعة ومتعددة الاستخدامات، تُعدّ خيارًا مثاليًا للمبتدئين في ركوب الدراجات على الطرق. تتميز بإطار من الألومنيوم ألفا، ومساحة كافية لإطارات أكبر، ونظام نقل حركة شيمانو كلاريس بثماني سرعات، وحامل أمتعة، وواقيات من الطين، وغيرها.
Frameset
| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Weight
| Weight | 56 - 10.55 kg / 23.26 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Drivetrain
| *Shifter | Size: 44, 49, 52, 54, 56, 58, 61 Shimano Claris ST-R2000-R, 8 speed, right |
|---|---|
| Size: 44, 49, 52, 54, 56, 58, 61 Shimano Claris ST-R2000-L, 8 speed, left |
|
| Front derailleur | Shimano Claris R2000, 31.8 mm clamp |
| Rear derailleur | Shimano Claris R2000, medium cage, 34T max cog |
| *Crank | Size: 44 Shimano RS200, 50/34 (compact), 165 mm length |
| Size: 49, 52, 54 Shimano RS200, 50/34 (compact), 170 mm length |
|
| Size: 56, 58, 61 Shimano RS200, 50/34 (compact), 175 mm length |
|
| Bottom bracket | Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle |
| Cassette | Shimano HG31, 11-32, 8-speed |
| Chain | Shimano Sora HG71, 8 speed |
| Max. chainring size | 1x: 50T, 2x: 50/34 |
Wheels
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Max tyre size | 38 mm without mudguards, 35 mm with mudguards |
Components
| Saddle | Verse Short, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
| Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
|
| *Handlebar | Size: 44 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width |
|
| Size: 49 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
|
| Size: 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
| Size: 52 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width |
|
| Size: 54, 56 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
|
| Size: 58, 61 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width |
|
| Size: 58 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
|
| Brake | Tektro C550 mechanical disc brake, dual piston, flat mount |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Sizing | ||
| Size | Rider Height | Inseam |
| 44 | 150 - 153 cm | 71 - 73 cm |
| 4'11" - 5'0" | 28" - 29" | |
| 49 | 156 - 163 cm | 74 - 77 cm |
| 5'1" - 5'4" | 29" - 30" | |
| 52 | 163 - 168 cm | 76 - 79 cm |
| 5'4" - 5'6" | 30" - 31" | |
| 54 | 168 - 174 cm | 78 - 82 cm |
| 5'6" - 5'9" | 31" - 32" | |
| 56 | 174 - 180 cm | 81 - 85 cm |
| 5'9" - 5'11" | 32" - 33" | |
| 58 | 180 - 185 cm | 84 - 87 cm |
| 5'11" - 6'1" | 33" - 34" | |
| 61 | 185 - 191 cm | 86 - 90 cm |
| 6'1" - 6'3" | 34" - 35" | |
