By TREK
Product Info

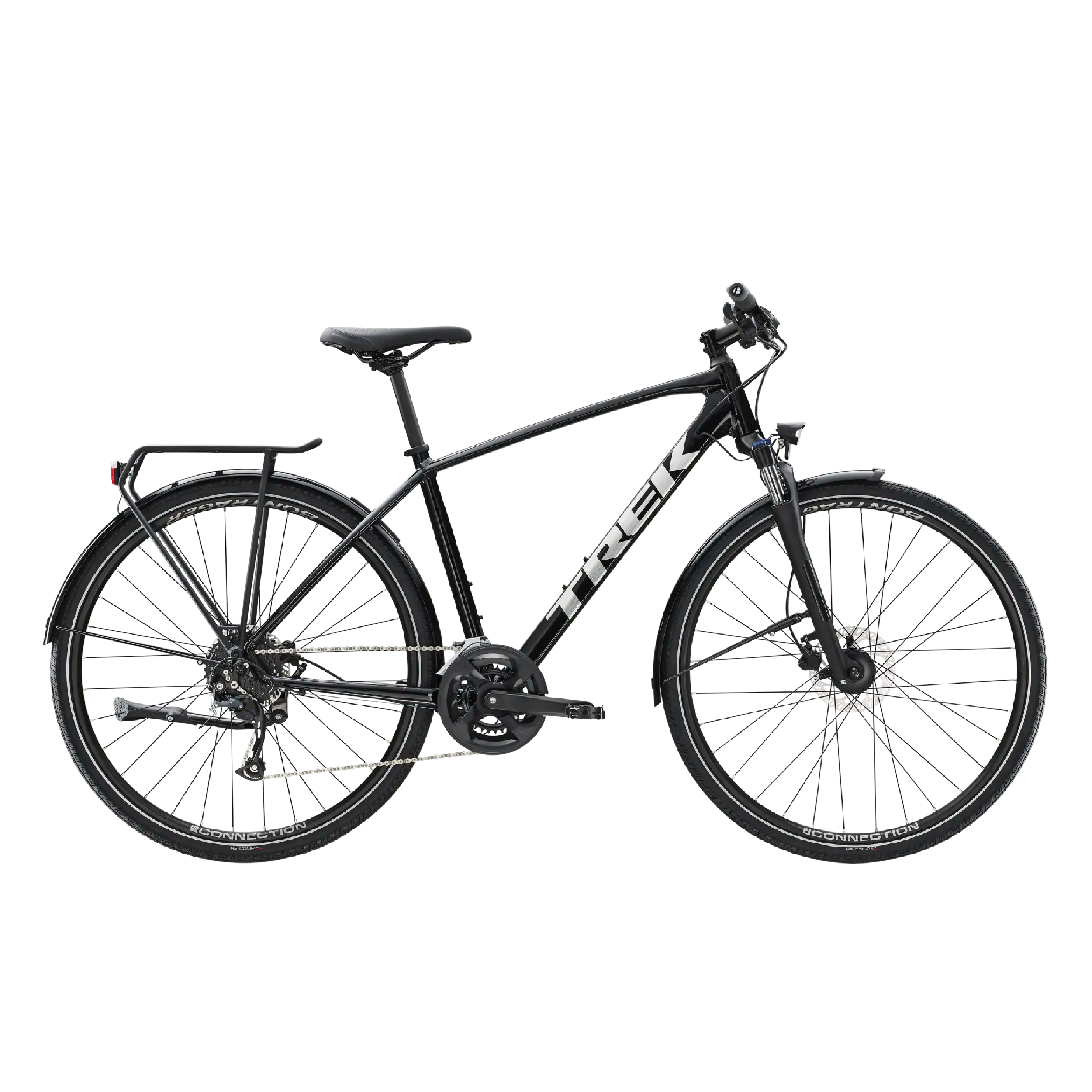

Dual Sport 2 Equipped is a comfortable, go-anywhere hybrid bike that's efficient on roads and stable on rougher terrain. The suspension fork and wide, grippy tyres smooth out your ride, and disc brakes give you impressive stopping power.
| *Frame |
Size: S Alpha Gold Aluminium, curved top tube, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR |
|---|---|
|
Size: M, L, XL Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR |
|
| Fork | SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel |
Wheels
| Hub front | Dynamo, 6V 3.0 W, 100x5 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve |
| Tyre | Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm |
| Max tyre size | Frame: 700x45mm with mudguards, 29x2.10" without mudguards, Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Altus M2010, 9-speed |
|---|---|
| Front derailleur | Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M2000, long cage |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedal | Wellgo M141, resin body, alloy cage |
Components
| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: S, M Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
Size: L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
| Grips | Bontrager Satellite |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
Size: M, L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
|
Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
| Head set | 1-1/8" threadless, sealed cartridge bearings |
| Brake Set | Tektro HD-M275 hydraulic disc, 160 mm rotor |
Accessories
| *Light |
Size: S, M, L, XL Herrmans H-Trace ECO dynamo LED |
|---|---|
|
Size: S, M, L, XL Spanninga Brio, 15 Lux, LED headlight |
|
| Kickstand | Alloy, rear-mount kickstand |
| *Mudguard |
Size: S, M, L, XL SKS plastic, front |
|
Size: S, M, L, XL SKS plastic, rear |
Weight
| Weight | L - 15.40 kg/33.96 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Sizing | ||
|
Size-table |
||
| Size | Rider Height | Inseam |
| XS | 147 - 155 cm | 69 - 73 cm |
| 4'10" - 5'1" | 27" - 29" | |
| S | 155 - 165 cm | 72 - 78 cm |
| 5'1" - 5'5" | 28" - 31" | |
| M | 165 - 175 cm | 77 - 83 cm |
| 5'5" - 5'9" | 30" - 33" | |
| L | 175 - 186 cm | 82 - 88 cm |
| 5'9" - 6'1" | 32" - 35" | |
| XL | 186 - 197 cm | 87 - 93 cm |
| 6'1" - 6'6" | 34" - 37" | |
