By TREK
Product Info
Get back on the road with genuine replacement parts.

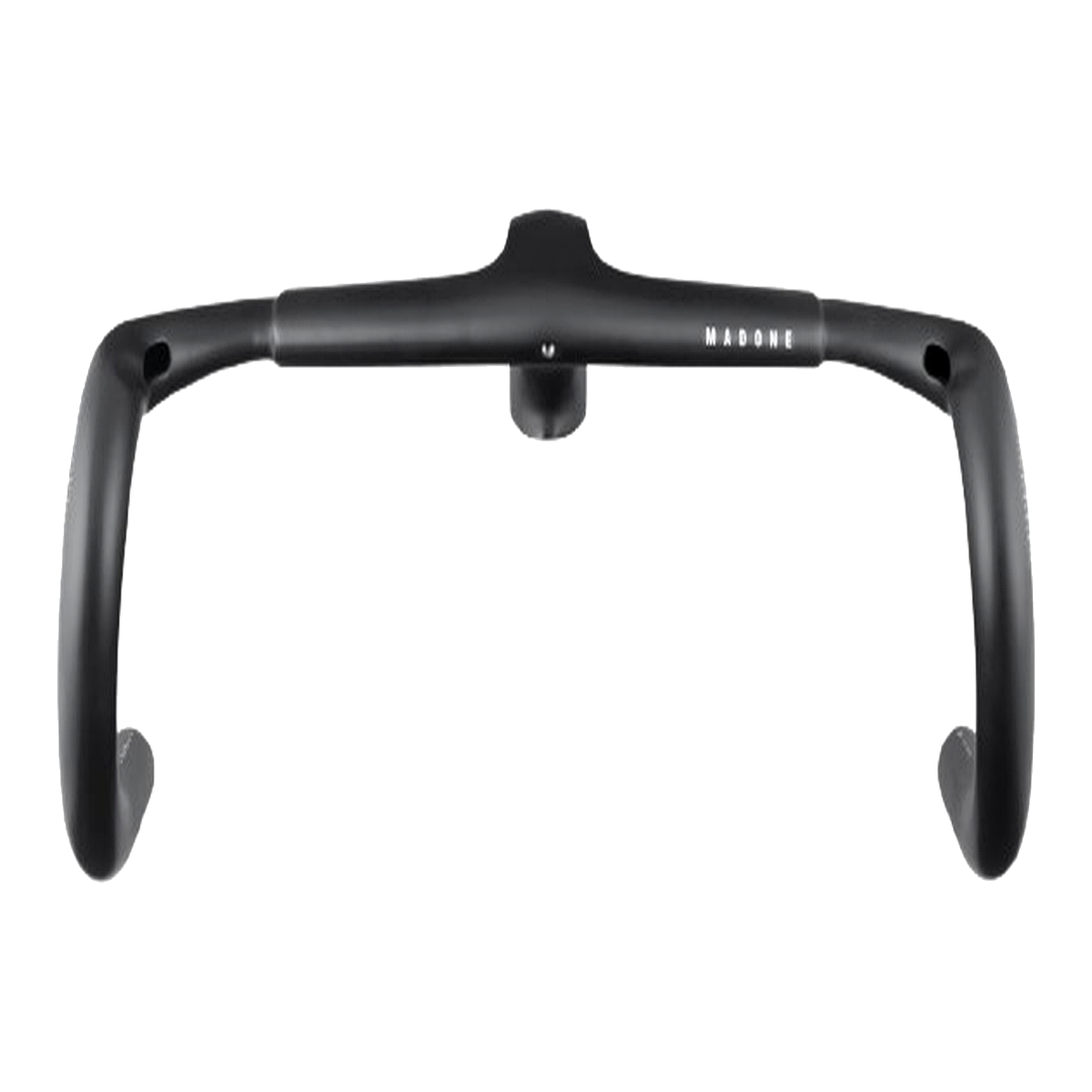

Original replacement barstem for your Madone SLR.
Product details
- Includes hardware and covers to allow for flush cut or exposed steerer
- 3cm narrower at the hoods than in the drops
- For optimal aerodynamic benefit
- Only compatible with the Madone Gen 7
| Size | 350mm/380mm x 80mm | 350mm/380mm x 90mm | 350mm/380mm x 100mm | 370mm/400mm x 90mm | 370mm/400mm x 100mm | 370mm/400mm x 110mm | 390mm/420mm x 90mm | 390mm/420mm x 100mm | 390mm/420mm x 110mm | 390mm/420mm x 120mm | 410mm/440mm x 110mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hood width | 350 mm: | 350 mm: | 350 mm: | 370 mm: | 370 mm: | 370 mm: | 390 mm: | 390 mm: | 390 mm: | 390 mm: | 410 mm: |
| Drop width | 380 mm | 380 mm | 380 mm | 400 mm | 400 mm | 400 mm | 420 mm | 420 mm | 420 mm | 420 mm | 440 mm |
| Stem length | 80 mm | 90 mm | 100mm | 90 mm | 100mm | 110 mm | 90 mm | 100mm | 110 mm | 120mm | 110 mm |
| Bend | Race fit | Race fit | Race fit | Race fit | Race fit | Race fit | Race fit | Race fit | Race fit | Race fit | Race fit |
| Drop | 124mm | 124mm | 124mm | 124mm | 124mm | 124mm | 124mm | 124mm | 124mm | 124mm | 124mm |
| Drop flare | 6 deg. | 6 deg. | 6 deg. | 6 deg. | 6 deg. | 6 deg. | 6 deg. | 6 deg. | 6 deg. | 6 deg. | 6 deg. |
| Reach | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Cable routing | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Material | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon |
| Weight | -- | -- | -- | -- | -- | -- | -- | -- | 293.0g | -- | -- |
